PDC680

PDC680

Dual-mode Rugged Radio

HandheldLTE-PMRGPS

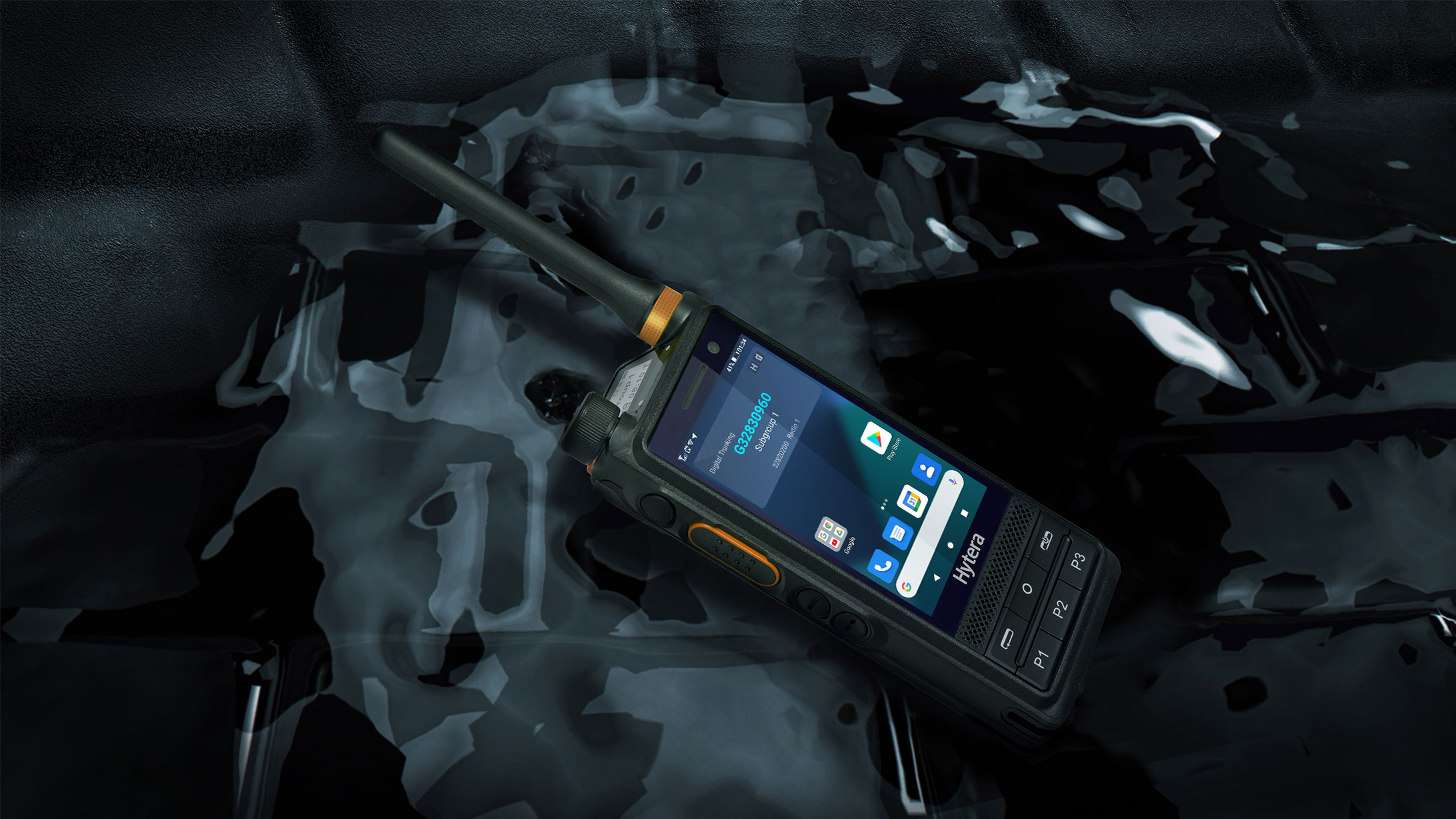

PDC680 dual-mode rugged radio combines a mission-critical DMR radio with an Android-based smartphone in a single device. It harnesses the power of narrowband and broadband technologies to provide mission-critical voice call, photo and video taking, positioning, etc. This innovative radio enables seamless communications between the DMR network and public networks such as 2G, 3G, LTE, and WLAN.

Get a Quote

Key Features

Loud and clear audio icon

Loud and clear audio

Using the enlarged front chamber technology and professional acoustic design, the PDC680 can output sound up to 128 dB. The PDC680 adopts AI-based noise cancellation, echo cancellation, and wind noise reduction technologies to ensure crystal and clear audio in noisy environments.

Rugged and durable icon

Rugged and durable

Rated at IP68 and ESD IEC Level 4, the PDC680 withstands water, dust, and electrostatic discharge. It can also withstand a 1.5-meter drop from all angles. The industrial-grade touchscreen stands up to continuous use in any weather.

All-in-one device icon

All-in-one device

The PDC680 combines a DMR radio and a smartphone into a single device with a highly integrated and modular design. So you do not need to carry two separate handsets for accessing voice, data, video, and more.

Precise Positioning icon

Precise Positioning

The PDC680 provides fast and accurate positioning to track people or devices, indoor and outdoor. The GPS, Galileo, GLONASS, QZSS, BDS, and A-GPS are used for outdoor positioning, while the location-based service (LBS) and WLAN are adopted for indoor positioning.

Purpose-built App icon

Purpose-built App

With the Android system, the PDC680 can support system-level apps developed by Hytera and other third-party apps. This helps you communicate and respond efficiently.

Smart Management icon

Smart Management

You can remotely manage radios in batches, including upgrade, programming, permission control, key configuration, app management, device health management, and data backup and recovery.

Technical Specifications

Dimensions (H×W×D)140 mm x 60 mm x 29.1 mm
Weight (with antenna & battery)325±5g
Operating SystemAndroid 10
Processor8-core, 1.8GHz
MemoryRAM: 3GB; ROM: 32GB eMMC; Supports up to 256GB with Micro SD card
DisplayTop Screen: 0.92" 128×88, black & white; Main Screen: 3.6" 1280×720, capacitive touch, glove-compatible
Card Slots2x Nano SIM cards; 1x Micro SD card; 1x Encryption card for narrowband
CameraFront: 8MP; Rear: 13MP
Battery2400 mAh Li-polymer, 7.7V (Rated); Optional 4000 mAh Li-polymer
Operating Voltage7.7V (Rated)
Frequency BandsUHF: 340–470 MHz; VHF: 136–174 MHz
LTEFDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B34/B38/B39/B40/B41
WCDMAB1/B2/B4/B5/B8
GSM850/900/1800/1900 MHz
WLAN802.11 a/b/g/n/ac, 2.4GHz/5GHz
BluetoothV4.2, BDR/EDR/BLE
NFC13.56 MHz (Optional)
GNSSGPS, BDS, GLONASS, Galileo, QZSS, A-GPS
Channel Spacing12.5 kHz / 20 kHz / 25 kHz
TX PowerUHF: 1W/4W; VHF: 1W/5W
Digital Vocoder TypeAMBE+2™
Dust & Water ProtectionIP68 (2m, 4h), IP66
ESDIEC 61000-4-2 (Level 4), ±8 kV (Contact), ±15 kV (Air)
